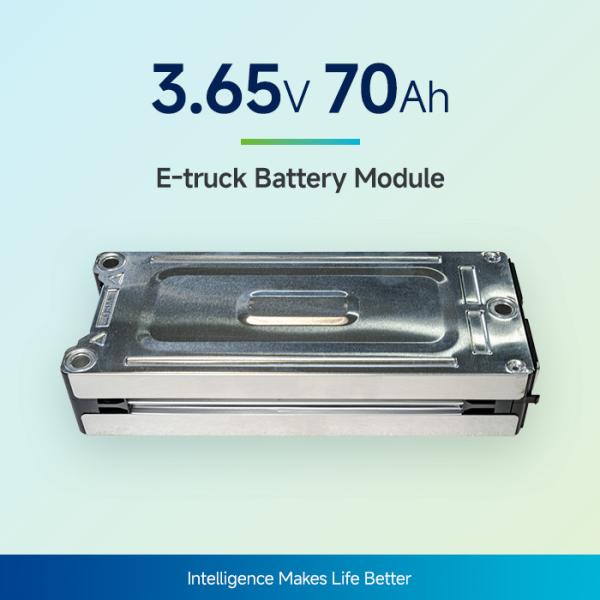

3.65V70Ah UL Certified NMC Lithium Battery Module For Tipper Truck And Delivery Truck

  • 1
  • 2

Brand Name : wenergy

Model Number : EV-8688190-3.65V70Ah

Certification : CE/MSDS/UN38.3/

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 pcs /day

Delivery Time : 25 working days

Packaging Details : Wooden case

Nominal Voltage : 3.65V

Nominal Capacity : 70Ah

Max. Peak Discharging Current : 3C

Max. Peak charging Current : 2C

Cyclelife : 3000 times

Application : Electric food delivery truck,electric cargo van ,Electric Food truck

Contact Now



3.65V70Ah UL Certified NMC E Truck Battery Module For Tipper Truck And Delivery Truck





Product Performance



No. Item Specification
1 Nominal Capacity 70Ah(25±3℃, 100%DOD,0.5C)
2 Nominal Voltage 3.65V(4P1S)
3 Charge Ending Voltage 4.2V(4P1S)
4 Discharge Ending Voltage 0℃≤T(Temperature)≤55℃ 3.0V(4P1S)
-20℃≤T(Temperature)≤0℃ 2.4V(4P1S)
5 Standard Charging Method 25±2℃0.5C constant current charge to 4.2V(4P1S) , then constant voltage 4.2V (4P1S)charge till charged current declines to ≤ 0.05C
6 Max. Constant Charging Current 1C
7 Max. Pulse Charging Current

2C≤30S


8 Standard Discharging Current

25±2℃,0.5C constant current discharge to 3.0V(4P1S)


9 Max. Constant Discharging Current 1C
10 Max. Pulse Discharging Current 3C(≥50%SOC,≤30s)
11 Operating environment

Charging:0℃~55℃, max.90%RH

Discharging: -30℃~55℃, max.90%RH




SEPNi8688190P-17.5Ah Module List



Name Specific
Battery Cell model SEPNi8688190P(NCM)-17.5Ah
Configuration 4P1S 5P1S
Rated voltage(V) 3.65
Module capacity(Ah) 70 87.5
 Weight 1.31kg±0.05kg 1.61kg±0.05kg
Weight Energy Density 195Wh/kg 198Wh/kg
Applications

 Electric Foodstuff truck truck ,electric Logistical truck, Electric Reefer truck





Applications :



The electric truck battery module  are mainly  utilized in  electric commercial truck  such as Electric transit van ,electric Dump/Tipper truck, Electric Reefer truck ,Electric Foodstuff truck ,electric cleaning truck and other electric medium/ heavy duty truck .



                Electric commercial truck  Battery system  list--NMC Series



 Battery pack  model Voltage(V) Capacity(Ah) Total Energy(KWh)  Applications
EV-335V265 335.8 262.5 88.14 Electric Foodstuff truck
EV-394V262 394.2 262.5 103.4 Electric logistic vehicle
EV-394V350 394.2 350 137.9 Electric pick up truck
EV-394V560 394.2 560 220.7 Electric heavy duty truck
EV-72300 72 300 21.6 Electric Tipper truck
EV-36081 360 81 29.1 Electric school bus
EV-568.8162 568.8 162 92.1 Electric Sanitation truck
EV-396608 396 608 241 Electric Terminal tractor
