22.2V 100Ah Lithium Battery Pack Module NCM VDA Standard 2.2KWh For Ev And Pick Up Truck

  • 1
  • 2

Brand Name : wenergy

Model Number : 06-VDA-2P6S-22.2v100Ah

Certification : MSDS, UN38.3, CE, CB, IEC 62619

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 / day

Delivery Time : 35 working days

Packaging Details : Wooden case

Battery Module : 22.2V100Ah

Size : 355*151*108mm

Battery Cell : SEPNi11100302P-50Ah

Maximum Pulse Charging Current : 1.5C

Maximum Pulse Discharge Current : 3C≤30S

Application : E Truck ,pick Up Truck . Heavy duty Truck ,electric Vehicle

Contact Now

 22.2V 100Ah Lithium Battery Module NCM VDA Standard 2.2KWh For Ev And Pick Up Truck





No.



Item





Performance
1

Nominal Capacity



 98Ah ,1C(25±2℃,3.0V~4.35V)
2 Nominal Voltage 22.2V
3

Charge Ending Voltage



 Suggest cutting off the maximum voltage of a single unit to 4.3V
4

Discharge Ending Voltage



 0℃≤temperature≤55℃ Suggest cutting off the minimum voltage of a single unit to 3.0V
-30℃≤temperature＜0℃ Suggest cutting off the minimum voltage of a single unit to 2.4V
5

Standard Charging Method



 25±2℃ 0.5C Charge the battery with a constant current until the highest voltage of the unit reaches 4.3V, and then charge it in a constant voltage mode until the charging current reaches ≤ 0.05C and stops
6

Max. Constant Charging Current



 1C
7

Max. Pulse Charging Current



 1.5C (25±5℃,50%SOC) ≤30S
8

Standard Discharging Current



25±2℃

1C constant current discharge until the lowest single voltage reaches 3.0V
9

Max. Constant Discharging Current



 1C
10

Max. Pulse Discharging Current



 3C (25±5℃) ≤30S
11

Operating environment



Charging: 0 ℃~55 ℃, max. 90% RH (charging conditions according to 3.4 charging mechanism)

Discharge: -30 ℃~55 ℃, max. 90% RH (discharge conditions according to 3.4 discharge mechanism)



All of the above believe that there is no heating system. If there is a heating system, it should be considered based on the actual situation
12 Module weight 10.3±0.3 kg
13

Energy Density



 Around 215.5Wh/kg
14 Insulation performance ≥500MΩ
15 pressure resistant performance 2700VDC, leakage current<1 mA

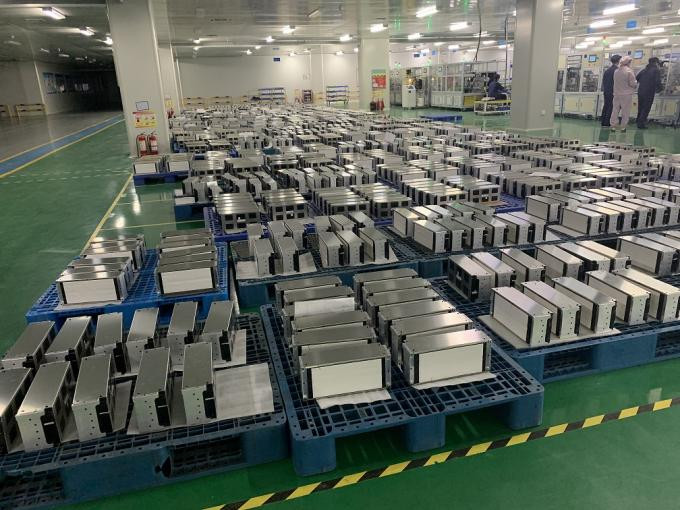

Battery module Production line



22.2V 100Ah Lithium Battery Pack Module NCM VDA Standard 2.2KWh For Ev And Pick Up Truck



Wenergy



From customized systems, standardized VDA modules to individual cells and battery cathode Material .we can offer several solutions to suitable for your application.



Battery Module :



We can produces standardized battery modules that demonstrates high productivity and flexibility.



Battery pack :



We can offers fully-integrated battery systems tailored to EV applications, along with a design and integration team that can develop and optimize systems to your unique specifications.
