2.2Kwh Standard 44.4V 50Ah VDA NMC Lithium Battery Module For E Truck Electric Vehicle

Product Categories

Wenergy Technologies Pte.Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 22Kwh Standard 444V 50Ah VDA NMC Lithium Battery Module For E Truck Electric Vehicle
Brand: wenergy
Price: 1 USD

Brand Name : wenergy

Model Number : 06-VDA-1P12S

Certification : CE/MSDS/UN38.3/IATF16949

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 500 pcs /day

Delivery Time : 35 working days

Packaging Details : Wooden case

Voltage : 44.4V

Capacity : 50Ah

Max. Pulse Discharging Current : 3C

Battery Cell : SEPNi11100302P-50Ah

Battery Cell Energy Density : 260 Wh/kg

Battery Configuration : 1P12S

Contact Now

2.2Kwh Standard 44.4V 50Ah VDA NMC Lithium Battery Module For E Truck And Electric Vehicle

No.	Item	Performance
1	Nominal Capacity	49Ah ,1C(25±2℃,3.0V~4.35V)
2	Nominal Voltage	44.4V
3	Charge Ending Voltage	Suggest cutting off the maximum voltage of a single unit to 4.3V
4	Discharge Ending Voltage	0℃≤temperature≤55℃	Suggest cutting off the minimum voltage of a single unit to 3.0V
		-30℃≤temperature＜0℃	Suggest cutting off the minimum voltage of a single unit to 2.4V
5	Standard Charging Method	25±2℃ 0.5C Charge the battery with a constant current until the highest voltage of the unit reaches 4.3V, and then charge it in a constant voltage mode until the charging current reaches ≤ 0.05C and stops
6	Max. Constant Charging Current	1C
7	Max. Pulse Charging Current	1.5C (25±5℃,50%SOC) ≤30S
8	Standard Discharging Current	25±2℃ 1C constant current discharge until the lowest single voltage reaches 3.0V
9	Max. Constant Discharging Current	1C
10	Max.Pulse Discharging Current	3C (25±5℃) ≤30S
11	Operating environment	Charging: 0 ℃~55 ℃, max. 90% RH (charging conditions according to 3.4 charging mechanism) Discharge: -30 ℃~55 ℃, max. 90% RH (discharge conditions according to 3.4 discharge mechanism) All of the above believe that there is no heating system. If there is a heating system, it should be considered based on the actual situation
12	Module weight	10±0.3 kg
13	Insulation performance	≥500MΩ
14	Pressure resistant performance	2700VDC, leakage current<1 mA

VDA module Superiority:

Using high energy density NCM materials reach to 260wh/kg .

Battery cell was designed for electric truck which adopt the VDA standard size to match any battery pack model

Have got the international certificates :UN38.3,MSDS,CE, IEC62619

Battery package are comply with international export transpotation rules UN38.3 ,MSDS and dangerous package certificate like IATA.

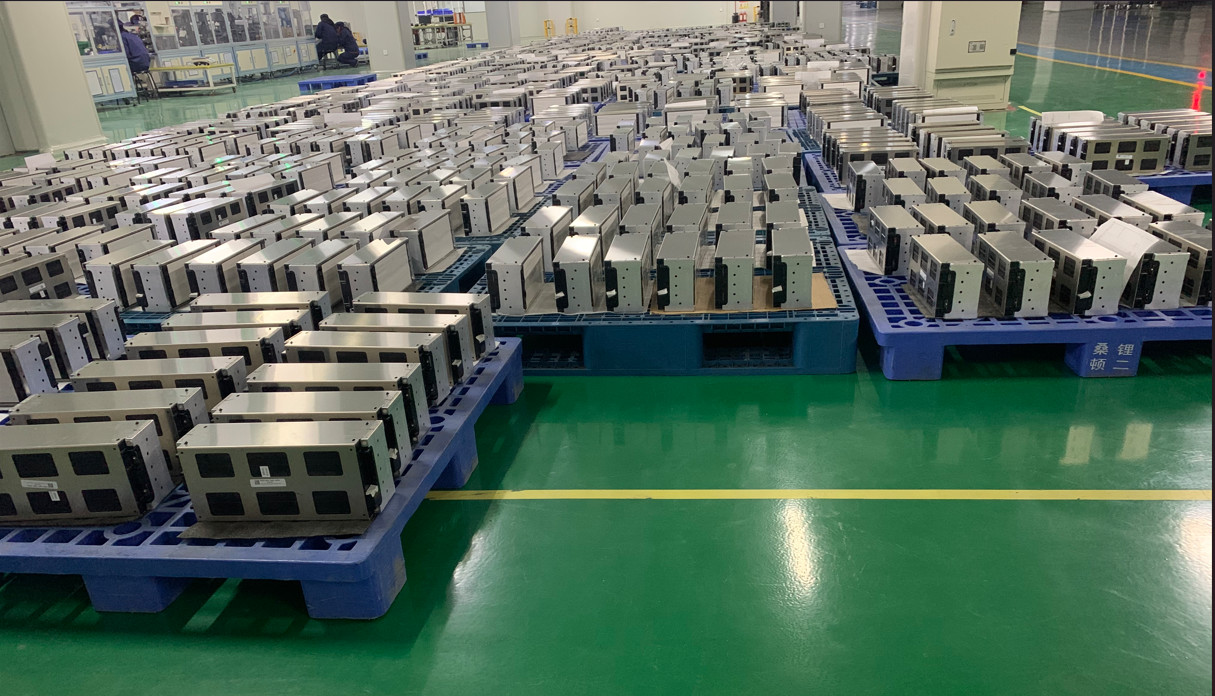

VDA Battery module production line
