Product introduction
48V 100Ah lithium battery for an electric golf cart is a powerful and efficient energy storage unit designed to provide reliable performance and extended range for the vehicle.
Battery pack specification :
Cell Configuration: 1P16S
Chemistry: LiFePO4
Capacity: 51.2V100Ah
Max Charging Voltage: 58.4V
Working Voltage Range: 40 - 58.4V
Max Continuous Discharge current : 200A
Max Charging Current : 100A Continuous, 300A @ 15s
Max Discharge Peak Current : 300A @ 15s, 700A @ 2s
Series | Parallel: Max (2) in Parallel
Charge Temp Range: 0°C / 55°C
Discharge Temp Range: -20°C / 60°C
Storage Temp: 0°C / 35°C (Max 12 Months)
Cycle life :3,500 Cycle Life
Charger, Fuel Gauge, 12V Converter, Mounting Bracket INCLUDED
Bluetooth (iOS & Android) with Over the Air Firmware Updates
Product Performance
· High discharge rate, providing strong and consistent power output for the golf cart.
· Extended range, enabling longer usage between charges.
· Low self-discharge rate, ensuring the battery retains its charge even during periods of inactivity.
Durability and Safety:
· Built-in Battery Management System (BMS) to monitor and protect against overcharging, over-discharging, short circuits, and overheating.
· Robust construction to withstand vibrations and shocks encountered during golf cart operation.
· Environmentally friendly, with no harmful emissions or pollutants.
Applications:

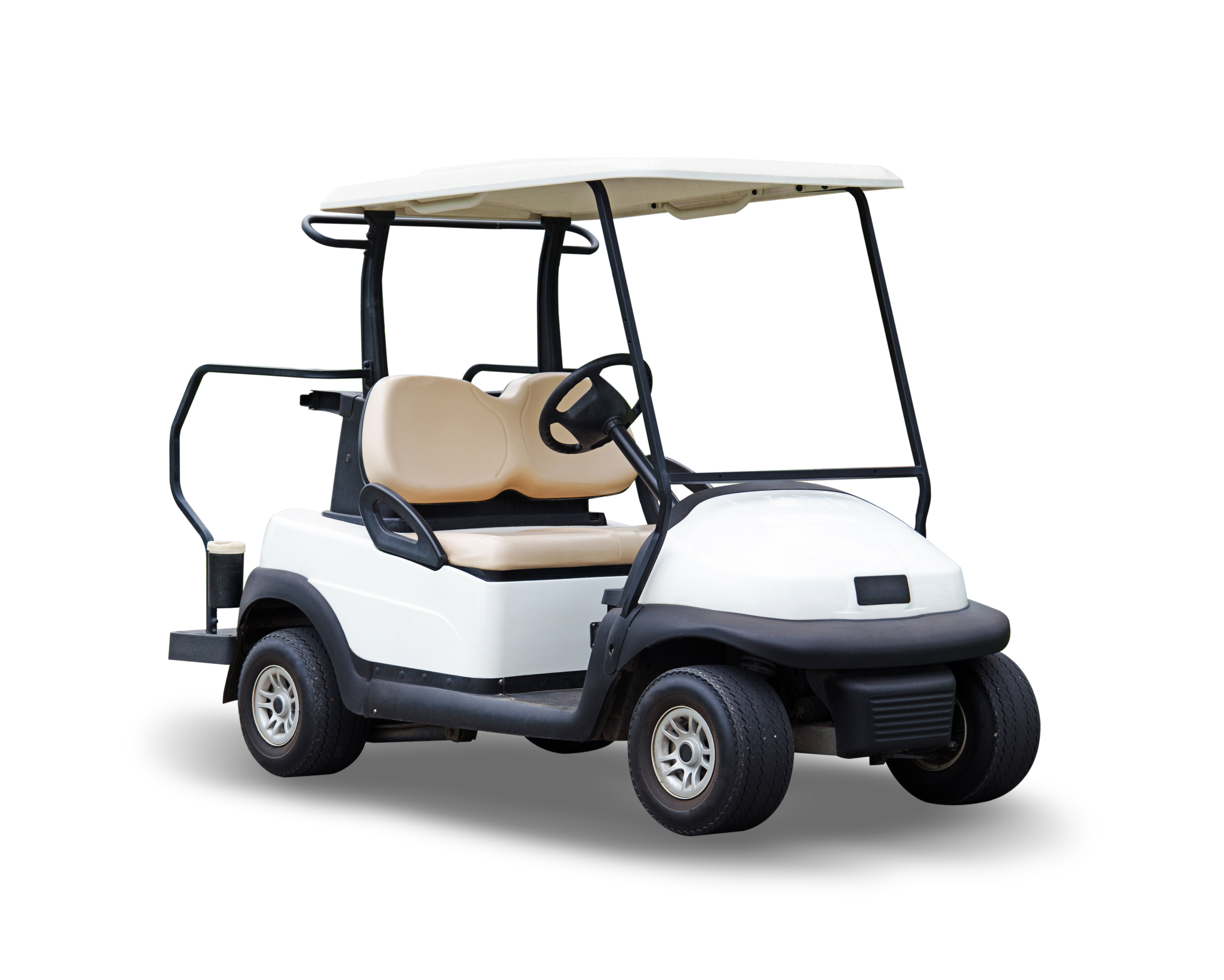

· Normally the battery pack are used in electric golf carts, utility vehicles, and other low-speed electric vehicles.
